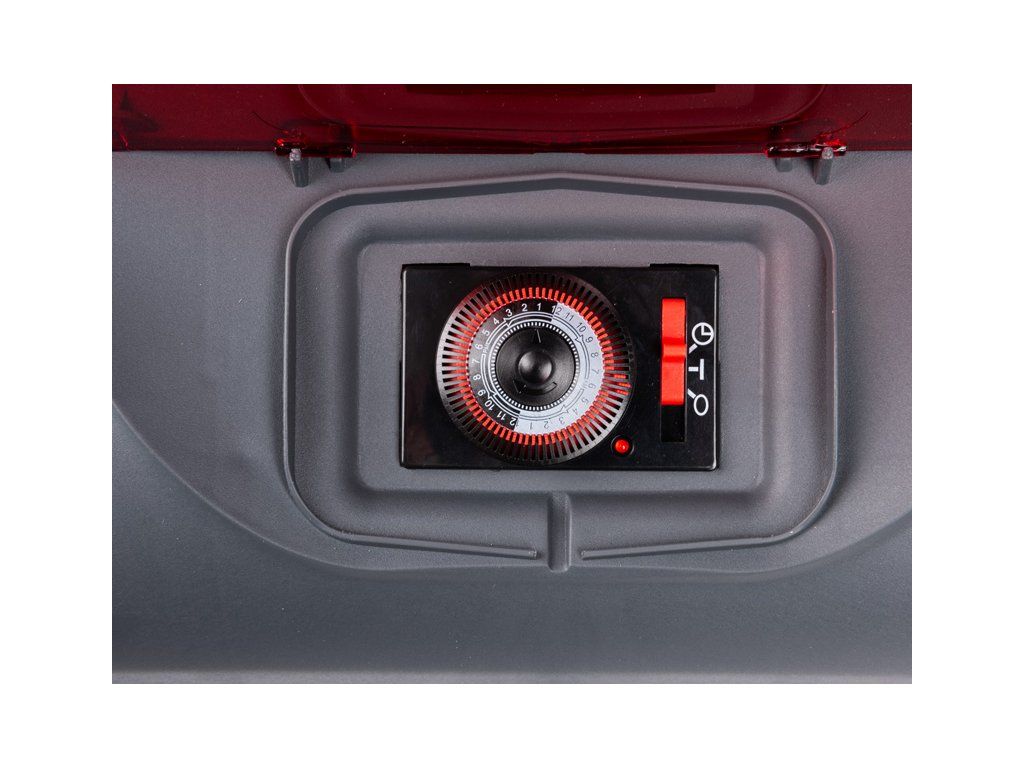

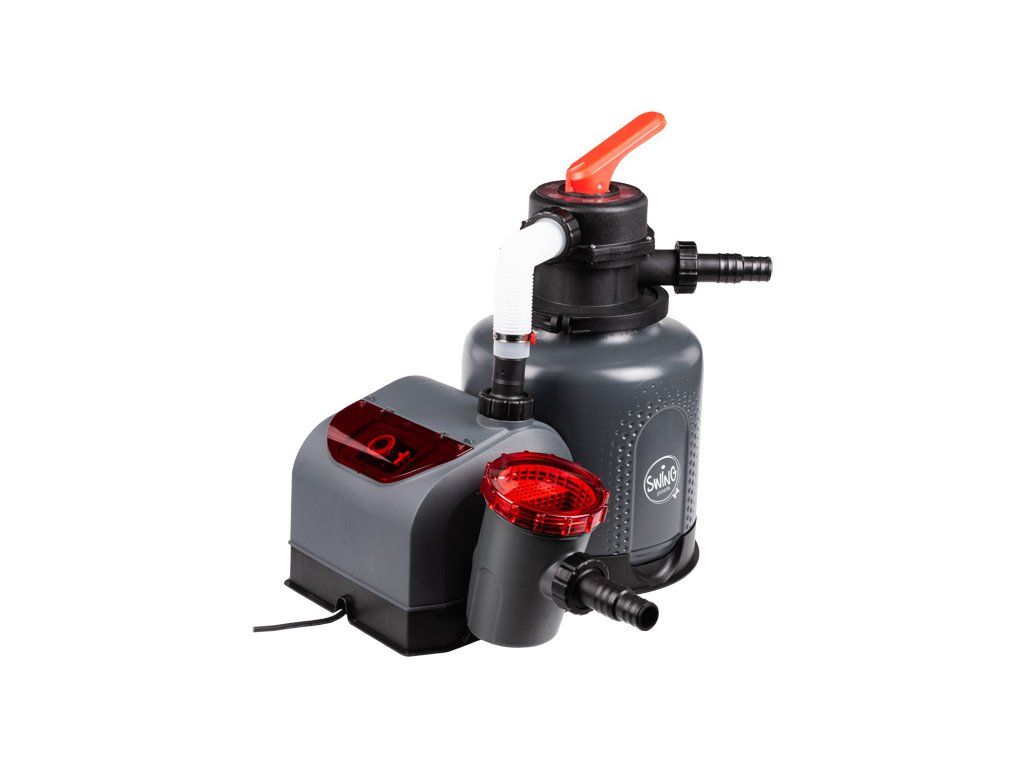

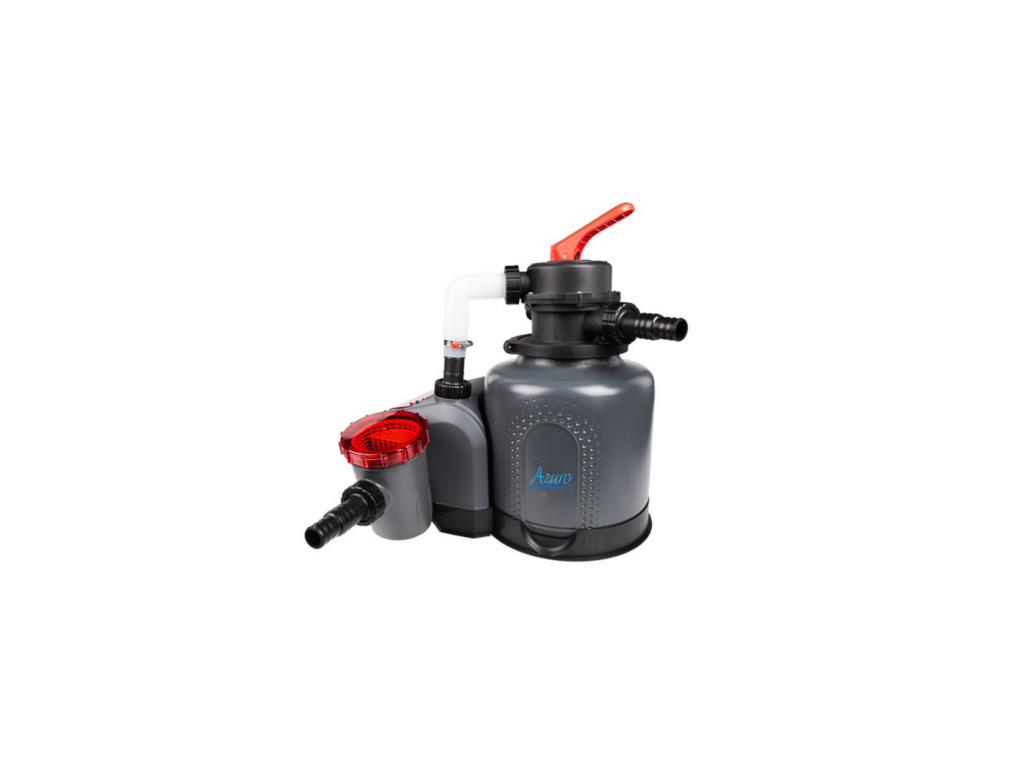

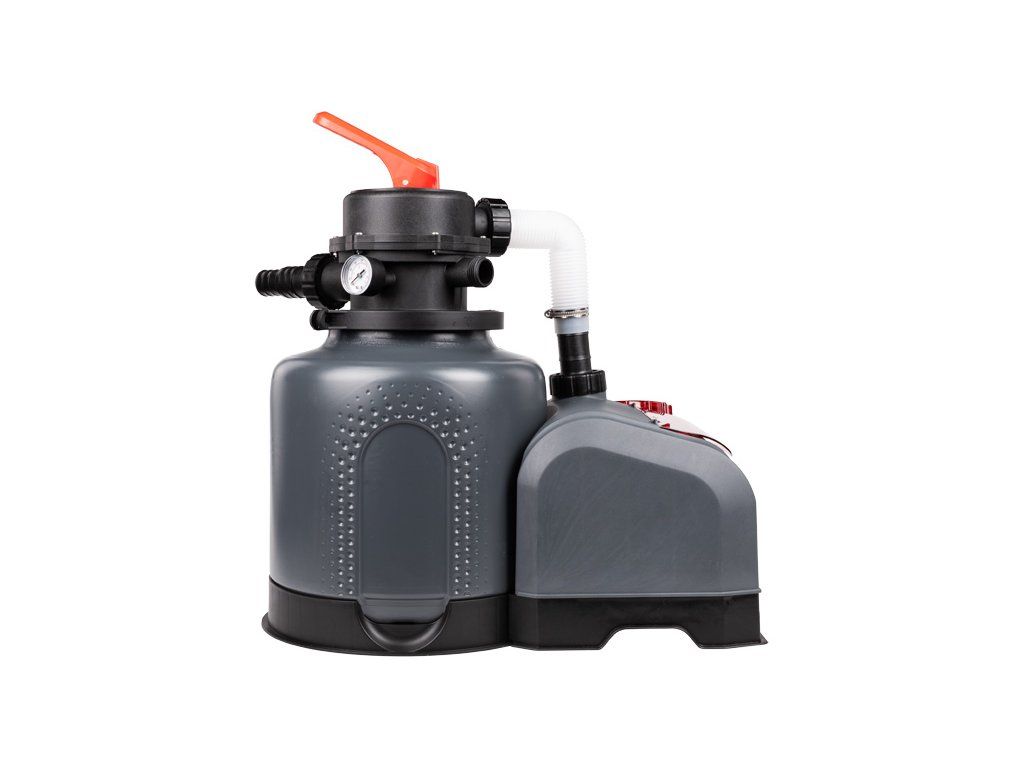

Sand filter Azuro 6m3/h + Timer
Code: 3EXX0858Related products
Product detailed description

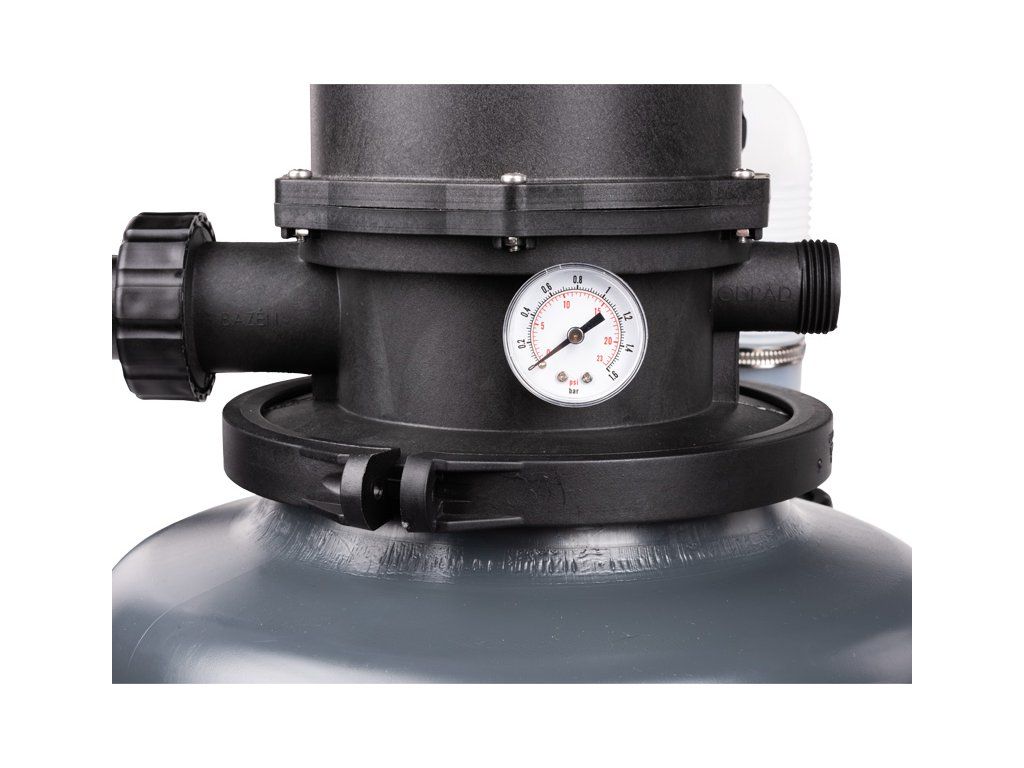

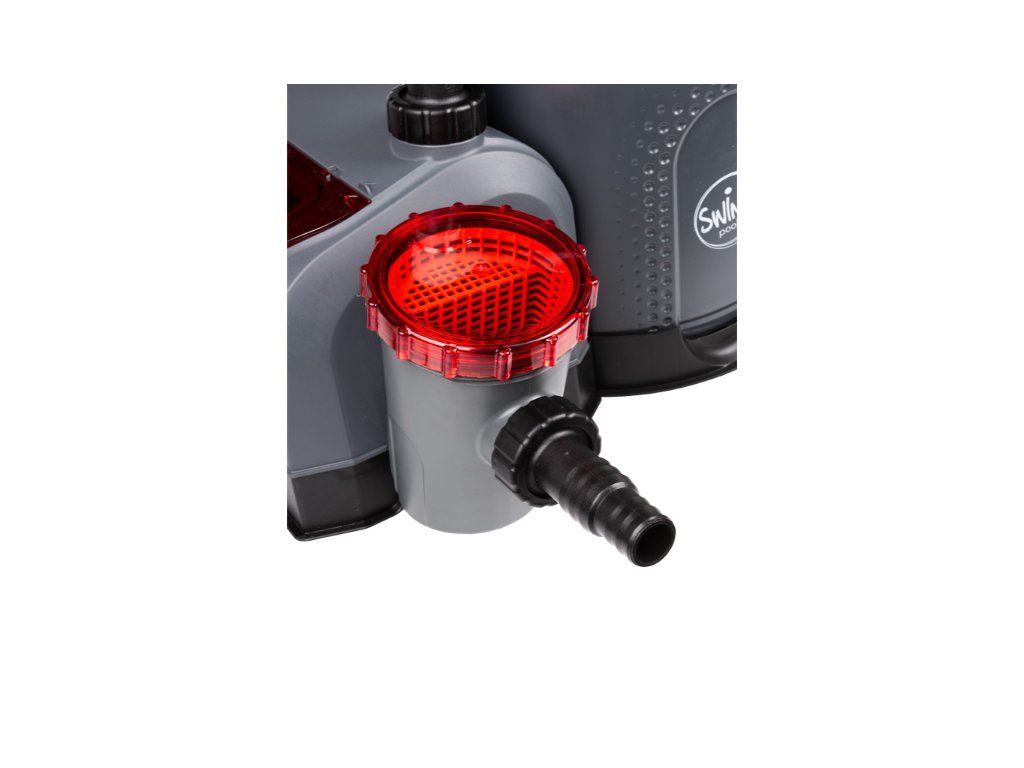

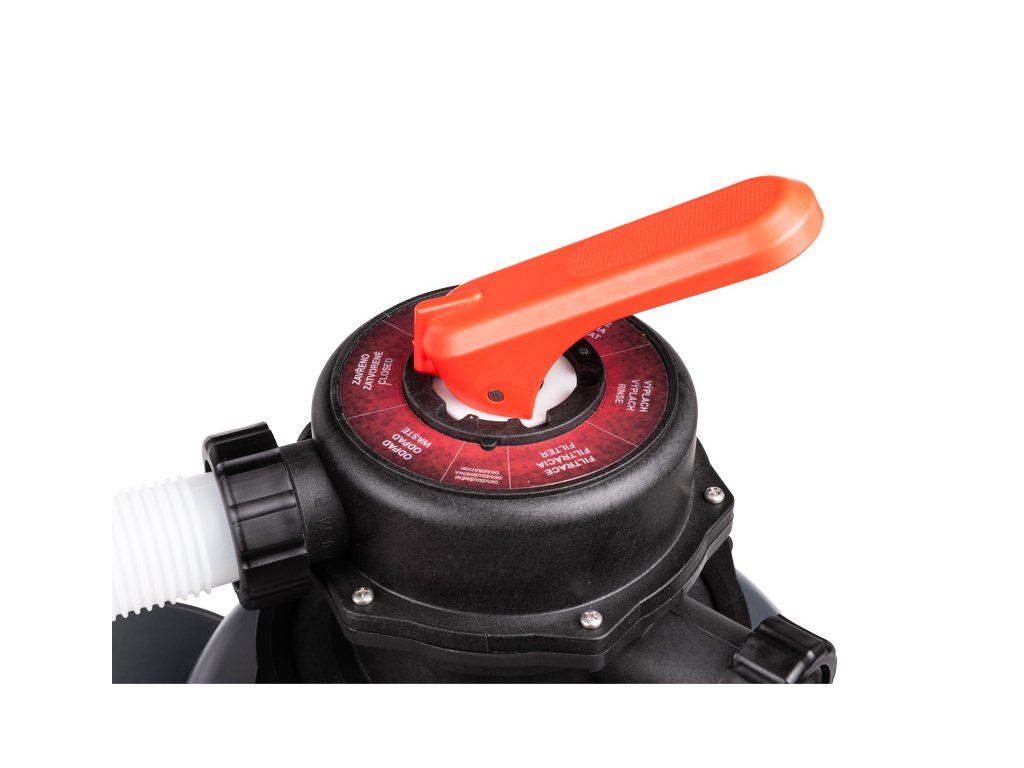

In addition to its attractive, modern design, it also features compact dimensions and a conveniently built-in pump with a coarse debris strainer located directly within the housing, which is designed to hold approx. 18 kg of filter sand. The six-way valve also offers, among other features, a bypass position for winter shutdown. The package also includes 2 pool hoses (length 3 m, ⌀ 38 mm) for connecting the filtration circuit.
Additional parameters
| Category: | Pool accessories |
|---|---|
| EAN: | 8591353019051 |
| Voltage: | 230 V/ 50 Hz |
| Power consumption: | 250 W |
| System flow-through: | 5.5 m³/h |
| Protection class: | IP X5 |
| Displacement: | 1,5 m |
| Filter diameter: | 143 mm |
| Effective filtering surface: | 0.036 m² |
| For poold up to: | 30 m³ |
| Turbidity reduction efficiency: | (TBR) 56% |
| Retained mass (DP20 test): | 21 g |
| Hose: | 2 pool hoses (length 3 m, ⌀ 38 mm) |
| Operating pressure: | 0.5 bar |
| Maximum working pressure: | 1.0 bar |
| Maximum water temperature: | 35°C |
| Sand capacity/type: | 18 kg Quartz sand 0.6 - 1.2 mm |
| Connection: | 38 pool hose |
